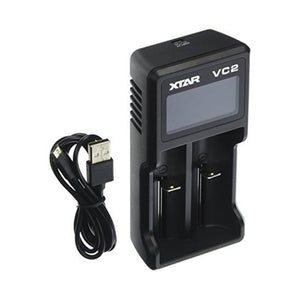

XTAR VC2 2 Bay 18650 Universal Battery Charger with LCD

$35.00
Save $10

XTAR VC2 2 Bay 18650 Universal Battery Charger with LCD for for 3.7V Li-ion Rechargeable Battery 10440 14500 14650 16340 18350 18500 18650 18700 20700 21700 26650

USB powered 1-2 cell intelligent charger with independent charging channels and sliding contacts suitable for lithium ion (Li-Ion) batteries in a variety of sizes. Features LCD display, auto battery type recognition, short circuit protection and reverse polarity protection. Compatible with any USB power source. USB cable included.

Features & Benefits

Intelligent charger suitable for up to two 3.6V/3.7V lithium ion cells in sizes 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 22650, 25500, 26650.
High definition LCD screen displays charging current, battery voltage and capacity.
Screen will flash 3 times every 10 secondsto indicate batteries are fully charged.
Three-phase charging (TC-CC-CV).
Automatically adjusts charge current from 0.15A to 0.5A.
Soft start current and automatic shut-off to avoid damaging batteries.
0V activation which may help recover over-discharged batteries.
Reverse polarity and short circuit protection.
Accidental insertion of faulty / NiMH batteries are automatically identified and will be displayed as 'NULL' on the screen.
Overheat protection as well as effective heat dissipation design and fire resistant ABS case.

By discharging the battery and recharging again, the VC2 is capable of identifying the real capacity left in the battery to ±5%, allowing you to better judge how long its current runtime might be and when it will need to be replaced.

Charging parameters:

Input power: DC 5.0V 1.0A
Max Constant Charging Current: 500mA ±50mA
Min. Constant Charging Current: 150mA ±50mA
Cut-off Voltage: 4.2V ±0.05V
Auto Recharging Threshold Value Voltage: 3.9V ±0.15V
Cut-off Current: ≤80mA

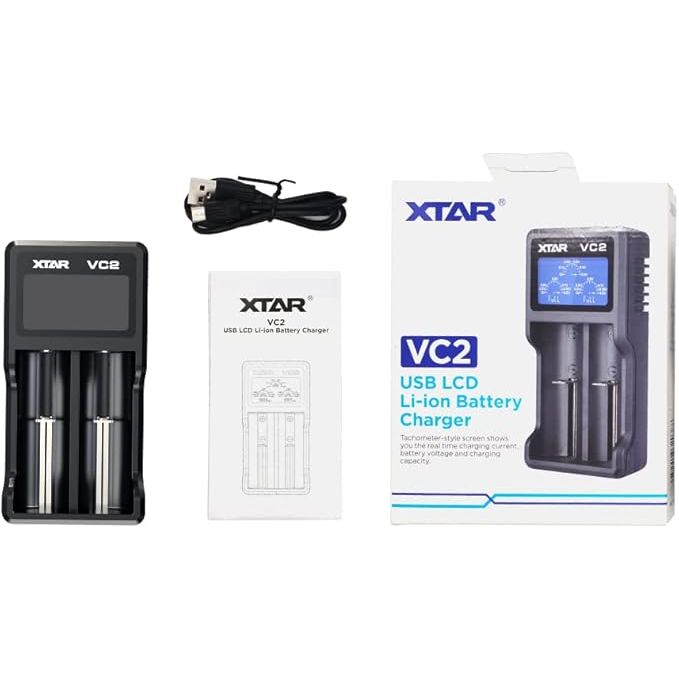

Package Includes

VC2 charger
USB charge cable
Soft carry pouch
User manual
Warranty card
